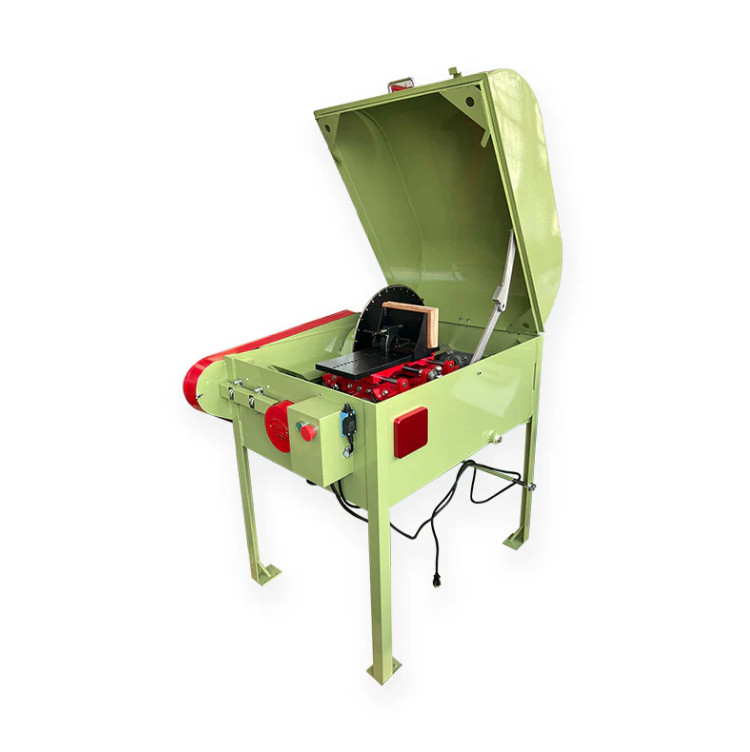

18 inch slab saw w/ HP Precision Blade, powerfeed, cross-feed vise and 1 HP 110V:
$5793.70

Model 18 lapidary diamond saw is an 18-inch precision cutter, glass coldworking and lapidary equipment slab saw with heavy-gauge, powder-coated steel tank, powerfeed, crossfeed vise, and 1 horsepower 110v motor. Includes Highland Park's best precision diamond blade.

HIGHLAND PARK 18 INCH SLAB SAW MODEL 18 WITH POWERFEED AND CROSS-FEED VISE

WORKPIECE SIZE:

Up to 6-3/4 inch x8 inch cross-section

FEATURES AND SPECIFICATIONS:

ARBOR SHAFT– Cold rolled steel machined to 1-inch bearing diameter. 3/4 inch diameter for diamond saw arbor

BLADE FLANGES– Aluminum 3¾ inch outside diameter

AUTOMATIC CUT-OFF SWITCH– adjustable for length of cut

POWERFEED– 3 speeds. Approximate workpiece infeed rates:

9 inches per hour

10¾ inches per hour

13½ inches per hour

SPLIT NUT DRIVE– Engages carriage with powerfeed screw. Released by a flip of the handle for quick carriage return

ROLLER BEARING CARRIAGE– Carriage rides on precision roller bearings instead of metal on metal bushings resulting in accurate operation that will never wear out

WAYS– 1¼ inch squarestainlesssteel structural tubing

SAW BOX– Welded 7 gauge steel. Inside dimensions 25¾ inches wide x 11-9/16 inches deep x 33-13/16 inches long. Overall height with the hood closed – 44 inches. Stainless drain cap and heavy-duty locking casters included

VISE–Steel jaws; 5 inches high x 7-3/8 inches long

‒Maximum workable jaw opening 9¼ inches

‒Lateral travel of vise assembly – 6 inches

V-BELTS– Connect the motor to the saw blade and powerfeed screw

MOTOR– 1HP 110vwith thermal protection and start and run capacitors

POWER REQUIREMENTS-

OVERALL DIMENSIONS-

SHIPPING WEIGHT– 608 lbs. FREE CRATE INCLUDED 39 x 48 x 53 in (10.58 pcf)

All Highland Park slab sawscome ready to run from the factoryprecision aligned to a tolerance of +/-.03mm +/- .001 inch

JUST THE RIGHT SIZE FOR SCHOOLS, GEOLOGICAL LABORATORIES AND LAPIDARY CLUBS AND ALSO THE MOST POPULAR SIZE FOR THE HOBBYIST.

The Model 18 is the most economical saw for the ranges of sizes of material most frequently cut. It is ideally suited for the rock cutter producing in volume. A highly effective production tool, it is compact enough for quick and convenient operation. Schools like this saw because it cuts fast enough to complete a demonstration within a class period. Geologists use the Model 18 for slabbing core samples. It is a favorite with lapidary clubs; used by members for specimens that are tool large for their own saws.
